PNEUMATIC SEALER

For sealing polyethylene or multi-layer film sachets, bags and pouches. Machine suitable for sealing medium and large-sized industrial bags.

ADVANTAGES

  • Impulse Driver for uniform seal quality
  • The controlled temperature of the sealing bars helps to reduce their wear
  • Ethernet connection for data recording and restitution
  • Sealing bars closed/opened pneumatically
  • Low pressure closing for operator safety
  • 10 mm wide seal
  • Sealing parameters adjusted and recorded on touch screen
  • Recording of the various sealing programmes
  • Hygienic design
  • Stainless steel throughout
  • Easy to use
Categories: ,

Description

The MSB11P ID impulse sealer is suitable for medium to large sized bags and for medium to high production rates.

Applications

  • Pharmaceutical/medical products: tablets, capsules, active principles, excipients, injected blow moulded plastic parts
  • Chemicals: plastic granules, colourants, phytosanitary products
  • Food-processing products: flavourings, additives, base products

Technical specifications

Description

  • Frame made of 304 stainless steel with lockable castors
  • Mechanical adjustment of sealing height
  • Set of single impulse sealing bars
  • Touchscreen for setting parameters
  • Sealing bars closed manually
  • Cycle LED
  • Power supply: 230 V monophase + earth
  • Power rating: 2.1 KW
  • Sealing length: 1000 mm
  • Sealing width: 10 mm

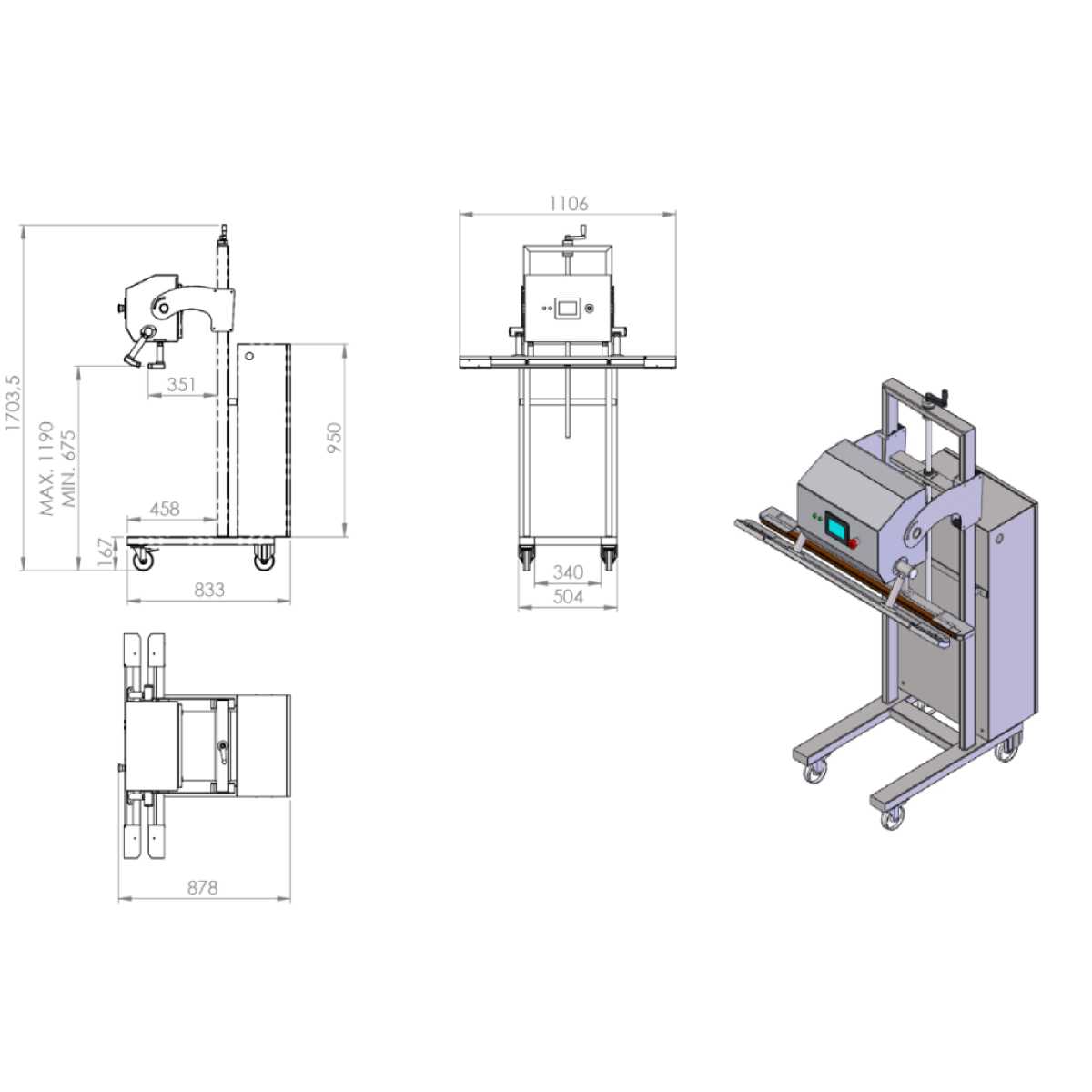

Overall dimensions

  • Length 1100 mm
  • Width: 860 mm
  • Height: Max 1700 mm
  • Weight: 145 Kg

Options

  • Vacuum drowing nozzle (MSB11PV_ID)
  • Bag support table with adjustable height
  • ATEX design
  • Electrically controlled upwards and downwards movement
  • Remote electric cubicle
  • EasyClean cabinet
  • Custom length of sealing bars
  • Double sealing bars
  • Stainless steel sealing bars
  • Two-hand control system
  • Remote control box
  • Automatic cycle starter
  • Light warning
  • Special programming
