VACUUM SEALER WITH GAS FLUSH

For vacuum and modified atmosphere packing sachets, bags and pouches made of barrier film. Machine suitable for sealing medium and large-sized industrial bags.

ADVANTAGES

  • Sealing bars closed manually and re-opened automatically by hydraulic jack
  • Recording of the various sealing programmes
  • Sealing parameters adjusted on touch screen
  • The controlled temperature of the sealing bars helps to reduce their wear
  • Ethernet connection for data recording and restitution
  • 10 mm wide seal
  • Hygienic design
  • Made of 304 and 316 stainless steel
  • Easy to use
Download the technical sheet

Description

The vacuum sealer with gas flush is designed for medium to large sized bags and for industrial applications. Furthermore, it is suitable for products requiring compaction before autoclave treatment.

Applications

  • Pharmaceutical/medical products: tablets, capsules, active principles, excipients, injected blow moulded plastic parts
  • Agri-food products: oxygen-sensitive (aromas, vitamins), products to be pasteurized or sterilized
  • Chemicals: hygroscopic plastic granules, colourants, phytosanitary products

Technical specifications

Description

  • Frame made of 304 stainless steel with lockable castors
  • Vacuum created by Venturi pump (flowrate 221 N/min) or vacuum pump (option)
  • PFTE profiled pipe
  • Mechanical adjustment of sealing height
  • Set of double impulse sealing bars
  • Screen/keyboard for setting parameters
  • Sealing bars closed manually
  • Cycle LED
  • Power supply: 230 V monophase + earth
  • Power rating: 2.1 KW
  • Sealing length: 1000 mm
  • Sealing width: 10 mm

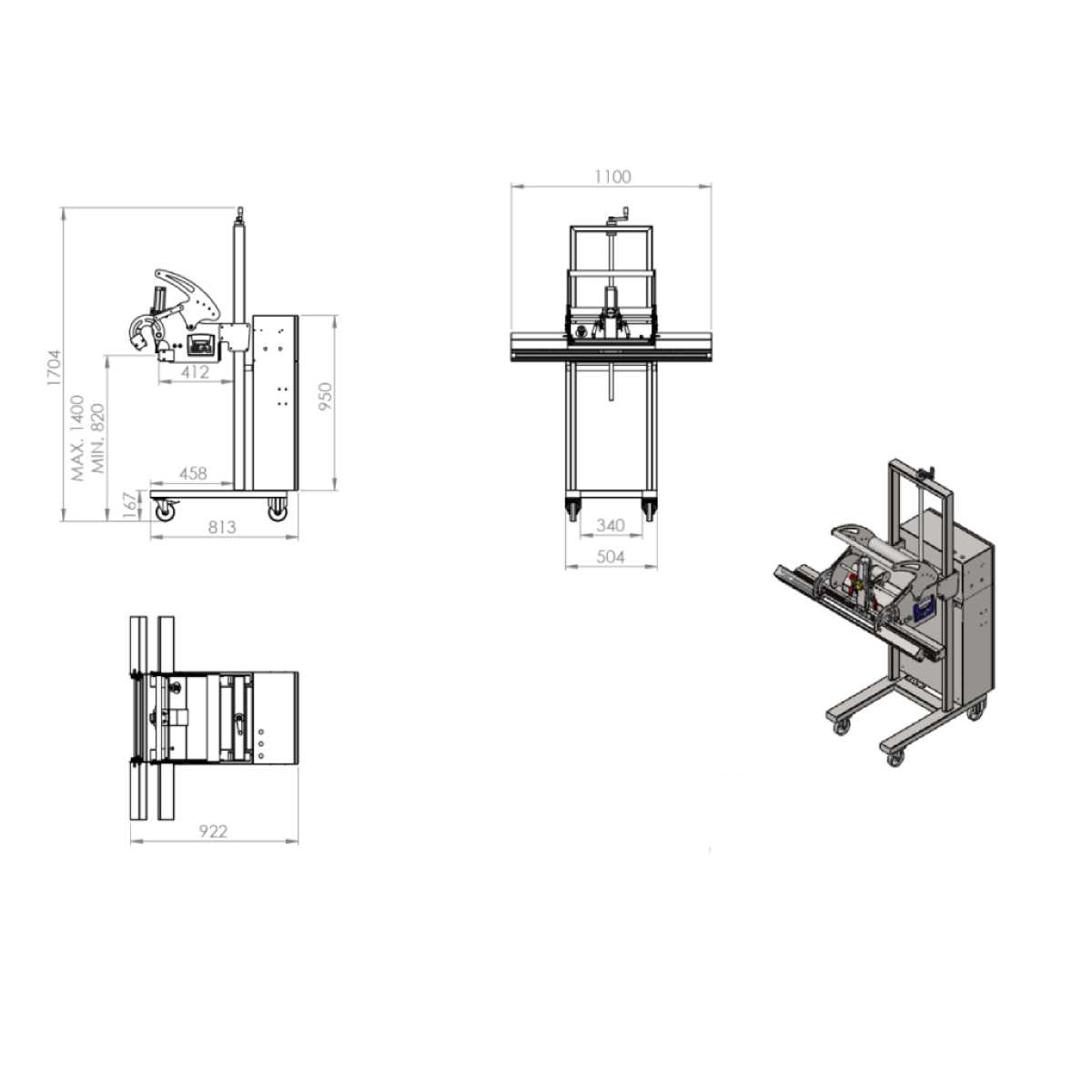

Overall dimensions

  • Length: 1100 mm
  • Width: 850 mm
  • Height: Max 1730 mm
  • Weight: 120 Kg

Options

  • Special frame
  • Bag support table with adjustable height
  • Electrically controlled upwards and downwards movement
  • Remote electric cubicle
  • EasyClean cabinet
  • Custom length of sealing bars
  • Stainless steel sealing bars
  • 9” PC panel
  • Light warning
  • Special programming
  • Fine dust filtration
  • Vacuum pump
  • Manometer
  • ATEX design
